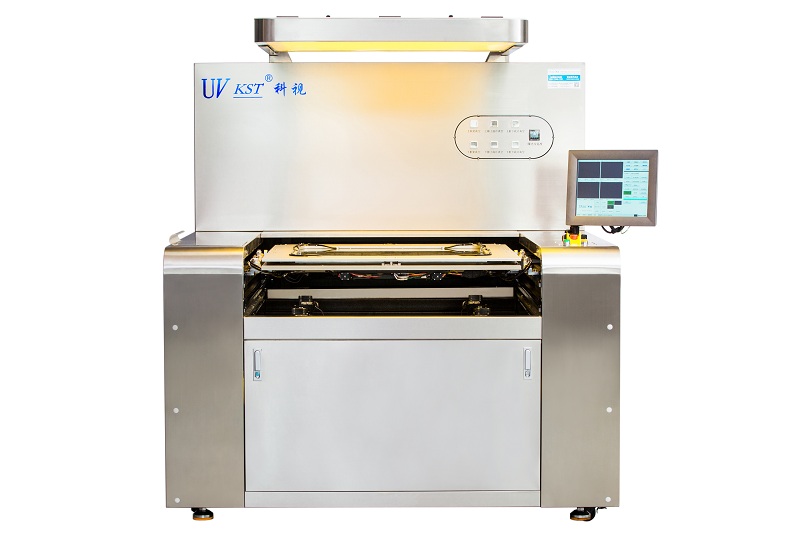

| 半自动LED内层双框曝光机 Semi Automatic LED Inner Layer Double Drawers Exposure Machine |
|||||
| 型号 参数 |
KST-SA6254-NX | KST-SA6457-NX | KST-SA7463-NX | ||
| 适用范围 Application Scope |
1 | 电路板尺寸 Panel Size |
Max：21.5"*24.5" | Max：21.5"*25" | Max：24.5"*28.5" |
| 2 | 电路板厚度 Panel Thickness |
0.1mm-3.2mm(含铜厚) 0.1mm-3.2mm(Including panel thickness) |
|||
| 3 | 底片尺寸 Film Size |
660mm×610mm | 691mm×631mm | 770mm×660mm | |
| 4 | 线路解析度 Line Resolution |
2.5mil/2.5mil | |||
| 光源系统 Light Source System |
5 | 光源类型 Type of Lighting Source |
LED平行光源 LED parallel light source |
||
| 6 | 平行半角 Parallel Half Angle |
≤2° | |||
| 7 | 能量均匀度 Energy Uniformity |
≥85%（使用KST LED专用能量计） ≥85%（Using KST LED Special energy meter） |
|||
| 8 | 冷却方式 Cooling Mode |
冰水冷却 lce-water cooling |
|||
| 工作台面 Working Table |
9 | 曝光方式 Exposure Mode |
双面曝光 Double sides exposing |
||
| 程序系统 Program System |
10 | 程序系统 Program System |
中文触摸式PC控制显示 Chinese touch type PC control and display |
||
| 对位系统 Alignment System |
11 | CCD数量 CCD Amount |
4CCD/对位 4CCD/alignment |
||
| 12 | CCD移动方式 CCD Movement Mode |
手动微调 Manual fine tuning |
|||
| 13 | 对位影像检测 Alignment Image Detection |
\ | |||
| 14 | 底片固定方式 Film Fixing Mode |
真空吸附 Vacuum adsorption |
|||
| 15 | 对位精度 Alignment accuracy |
±10μm | |||
| 16 | 台框重复精度 Frame repeat accuracy |
12μm | |||
| 生产能力 Production Capacity |
17 | 生产能力 Production Capacity |
2.5-4 片/分钟 2.5-4 pieces per minute |
||
| 环境需求 Demands on Environment |
18 | 环境温度 Environment Temperature |
22℃±2℃ | ||
| 19 | 环境湿度 Environment Humidity |
55%±5% | |||
| 20 | 无尘度 Clean Degree |
10000级 Class10000 |
|||
| 外部设施 External Facilities |
21 | 空压需求 Air Pressure |
6.0kg/cm²，流量150-180L/min 6.0kg/cm², flow rate: 150-180L/min |
||
| 22 | 冰水需求 Ice Water |
LED 光源冷却：自带冰水机; LED light source cooling: self-brought ice dispenser; |
|||
| 曝光室冷却：7-12℃，流量5L/min,压力2-3kg/cm²; Exposure room cooling:7-12℃,flow rate:5L/min,pressure:2-3kg/cm²; |
|||||
| 21 | 电力需求 Power Supply |
三相五线380V AC/50Hz/15KVA Thre-phase Five-wire 380V AC/50Hz/15KVA |
|||
| 尺寸/重量 Overall Dimension/Weight |
23 | 设备尺寸(mm) Dimension(mm) |
2778mm(L)×1648mm(W)×2075mm(H) | 2778mm(L)×1748mm(W)×2075mm(H) | |
| 24 | 设备重量 Weight |
1400KG | 1400KG | 1500KG | |
