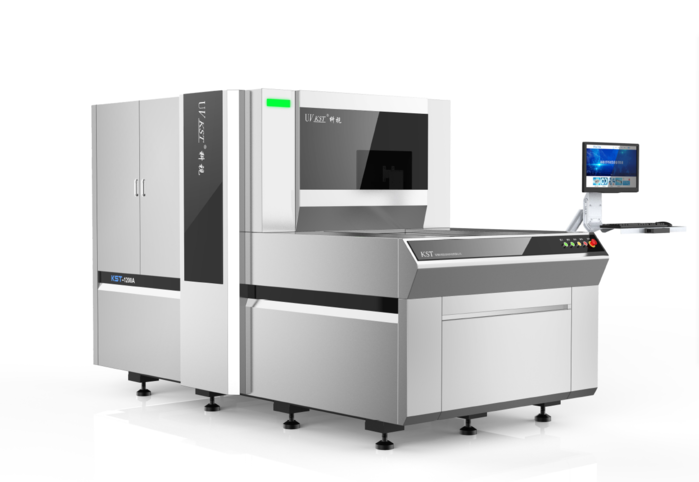

Mass-production, high-capacity, direct imaging solution for a wide variety of Inner Outer Layer applications
|
No. |
Item |
KST-DI2428-6XLB |
KST-DI2428-12XLB |
|
1 |
PCB size（Max） |
24.5" * 28.5 " |
24.5 " * 28.5 " |
|
2 |
PCB size (Min） |
25 " * 21 "【Clampable】 16 " * 16 "【Customizable Clamp Structure】 12 " * 12 "【Non Clampable】 |
25 " * 21 "【Clampable】 16 " * 16 "【Customizable Clamp Structure】 12 " * 12 "【Non Clampable】 |
|
3 |
PCB Thickness |
0.08 – 4.0mm |
|
|
4 |
Clamp Structure |
Yes |
|
|
5 |
Line Resolution |
50um/50um |
|
|
6 |
Light Source depth of field |
±300um |
|
|
7 |
Alignment Accuracy |
±12um |
|
|
8 |
Processing Speed |
24.5" *28.5" PCB Dry film 2.5 – 3 PNL /min High sensitive ink，Dry film 3.5 PNL/min； |
|
|
9 |
Sensitive material |
Dry film, Wet film |
|
|
10 |
Laser/DMD No. |
6（Total 6） |
12（Total 12） |
|
11 |
Uniformity |
≥90% |
|
